ACCEL - 140037

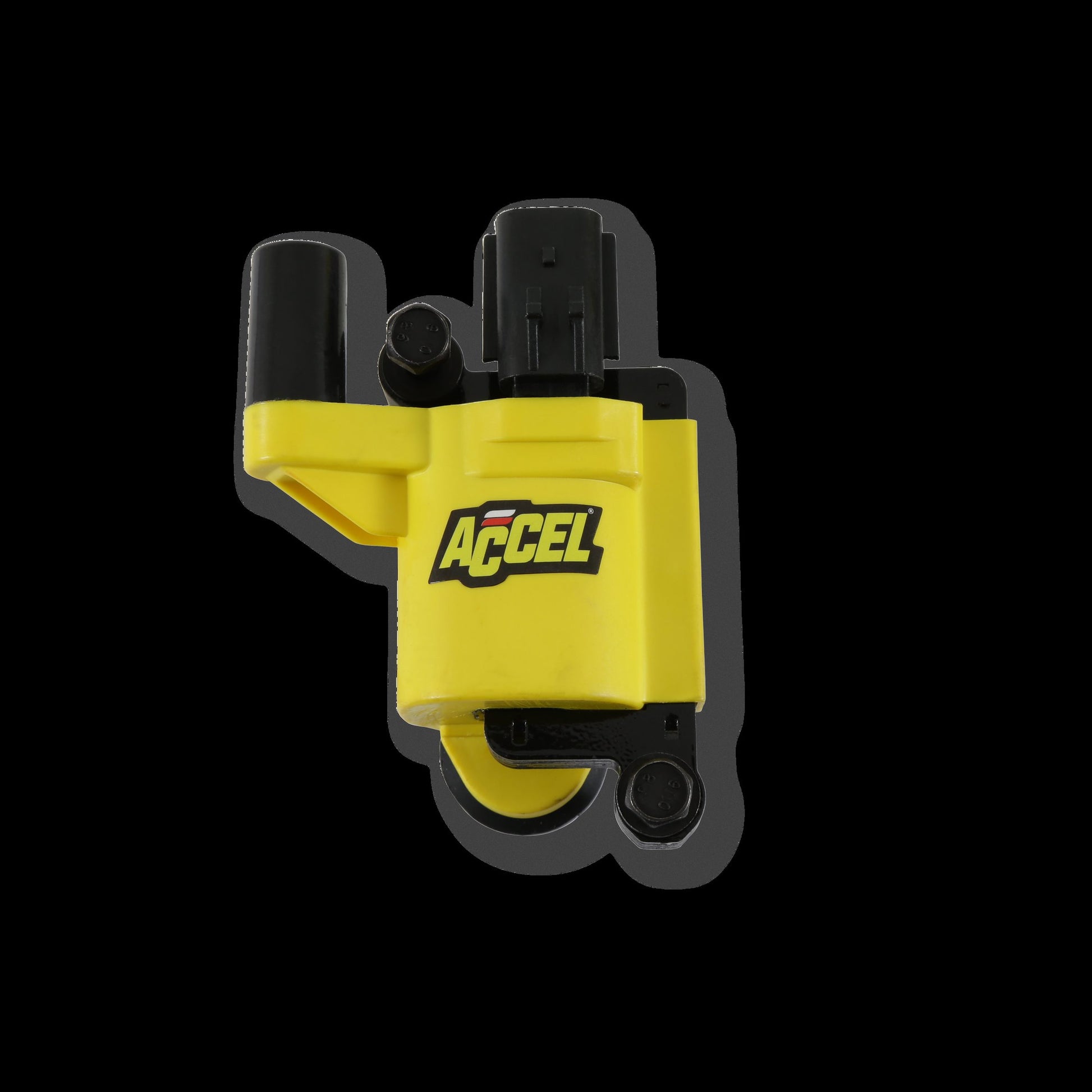

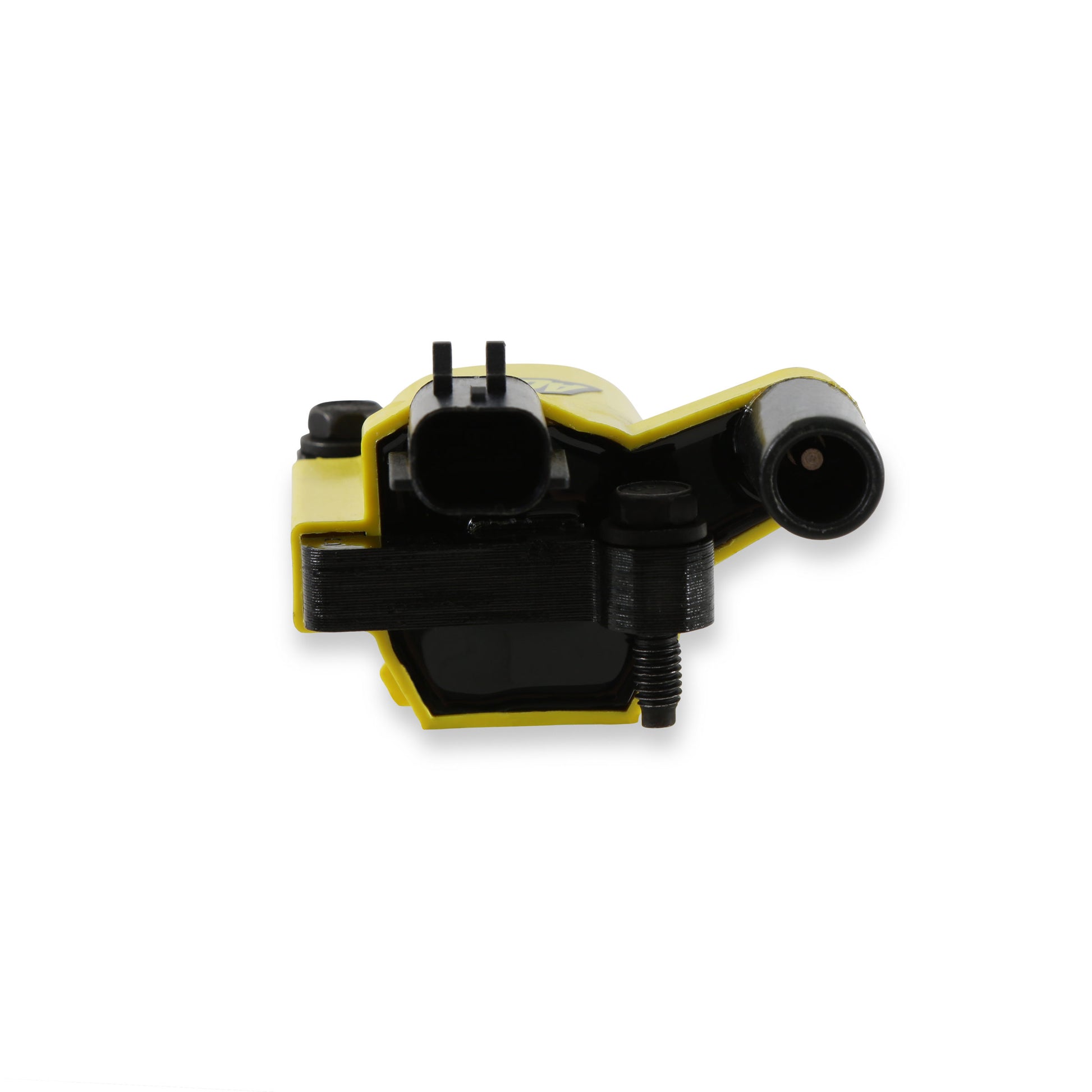

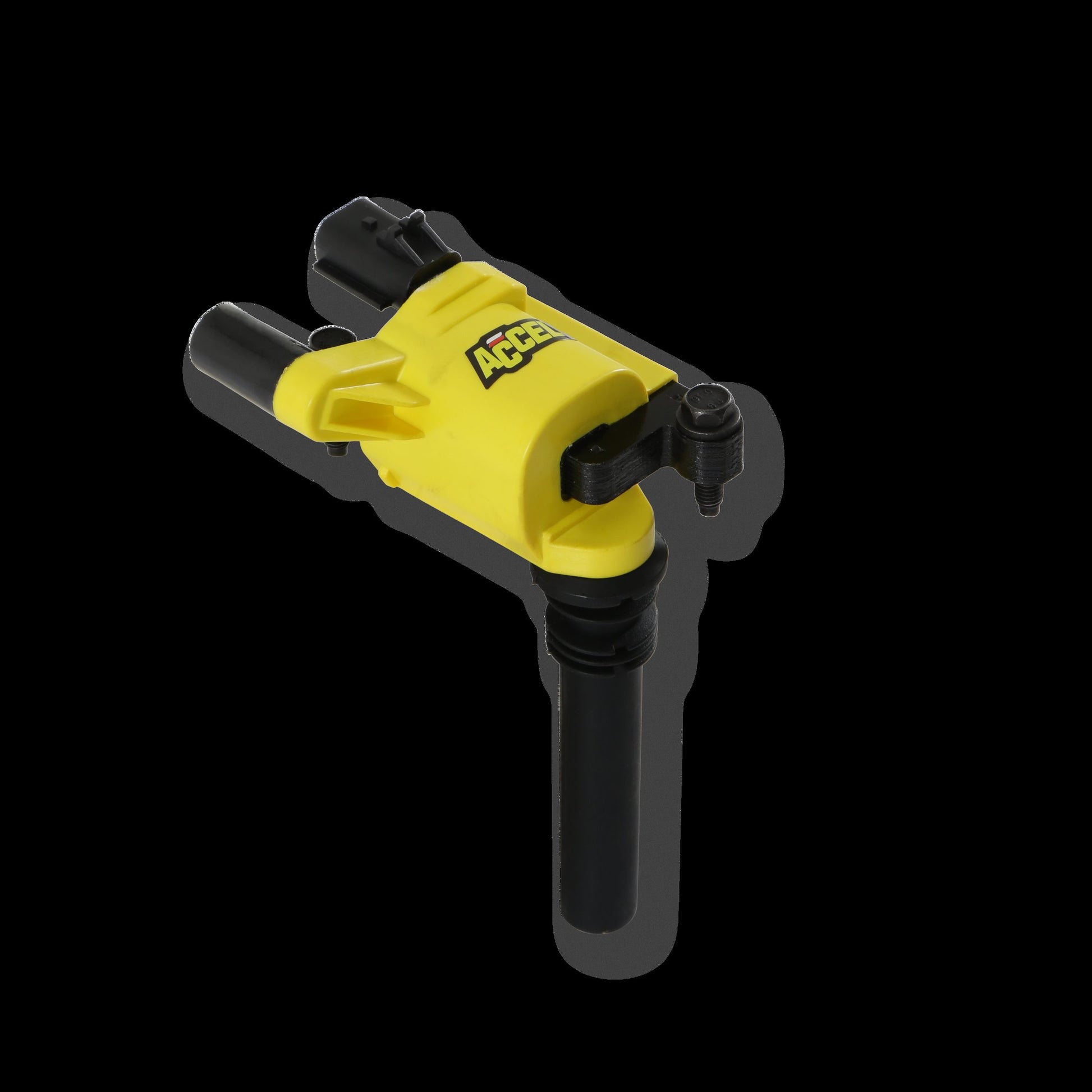

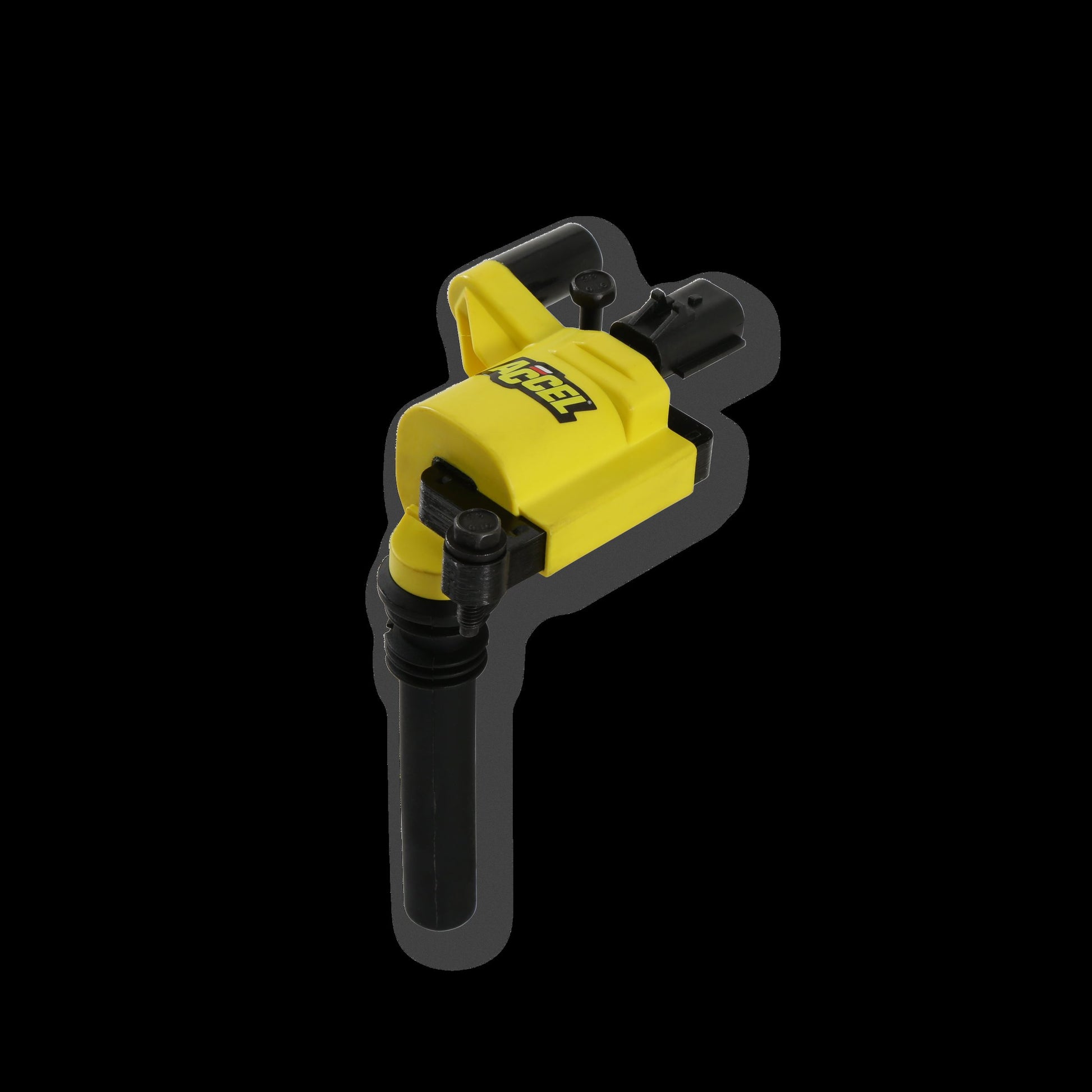

ACCEL Ignition Coil - Gen 3 Hemi 5.7L Single Plug - 2003-2007, Individual
SuperCoil Direct Ignition Coil; Silicone Magnetic Steel Core; Primary Resistance .47 Ohms; Secondary 6.1k Ohms; Max. Voltage 37000V; Yellow;
These coils feature advanced bobbin technology, highly specialized silicone magnetic steel cores, along with optimized winding, resistance and turns ratios to delivery 10-15 percent more energy than the OEM coils. Specialized high temperature epoxy resists shock and vibration, while increasing thermal conductivity. These are direct plug replacements for OEM coils. They feature bodies and, or secondary towers molded in ACCEL yellow and feature brass secondary contacts (except direct fire coil on plug applications).
- Advanced Bobbin Technology
- Highly Specialized Silicone Magnetic Steel Core/Optimized Winding
- Manufactured w/High Temperature Epoxy
- Resists Shock And Vibration While Increasing Thermal Conductivity
Application: Dodge, Jeep, Chrysler
Brand: ACCEL
Category: Ignition
Color: Yellow
Emission Code: 3
Engine: Gen 3 HEMI
Finish: Semi-gloss
Grade Type: Performance
Ignition Type: Distributorless
Maximum Voltage: 37,000 Volts
Mounting Bracket Included: No
Mounting Hardware Included: Yes
Oil Filled: No
part type: Direct Ignition Coil
Peak Increase in Current vs. OE: 15%
Primary Resistance: .47
Product Type: Ignition Coils
Quantity: Single
Quantity: 1
Quantity Per Pkg.: 1
Secondary Resistance: 6.1
Sub Category: Ignition Coil
