Wiseco K0234X05 - Chevrolet LT1 6.2L 4.070 Bore 1.115 Comp Ht. 4.000 Stroke 6.125 Rod -20cc

Wiseco K0234X05 - Chevrolet LT1 6.2L 4.070 Bore 1.115 Comp Ht. 4.000 Stroke 6.125 Rod -20cc

Wiseco | K0234X05
SKU: BJKF-K0234X05
Regular price $1,166.99 USD
Regular price $1,296.66 USD Sale price $1,166.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Wiseco K0234X05 - Chevrolet LT1 6.2L 4.070 Bore 1.115 Comp Ht. 4.000 Stroke 6.125 Rod -20cc

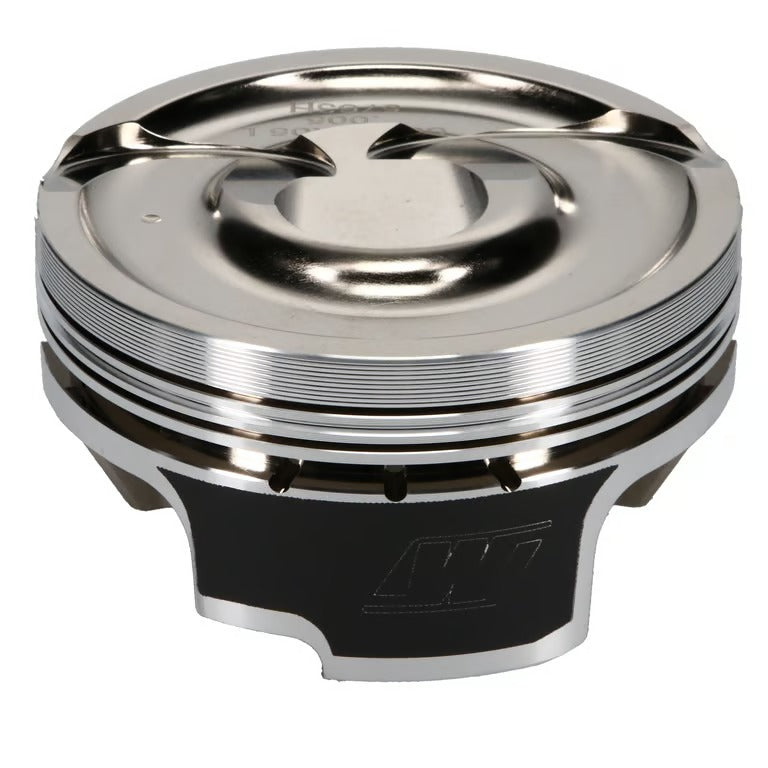

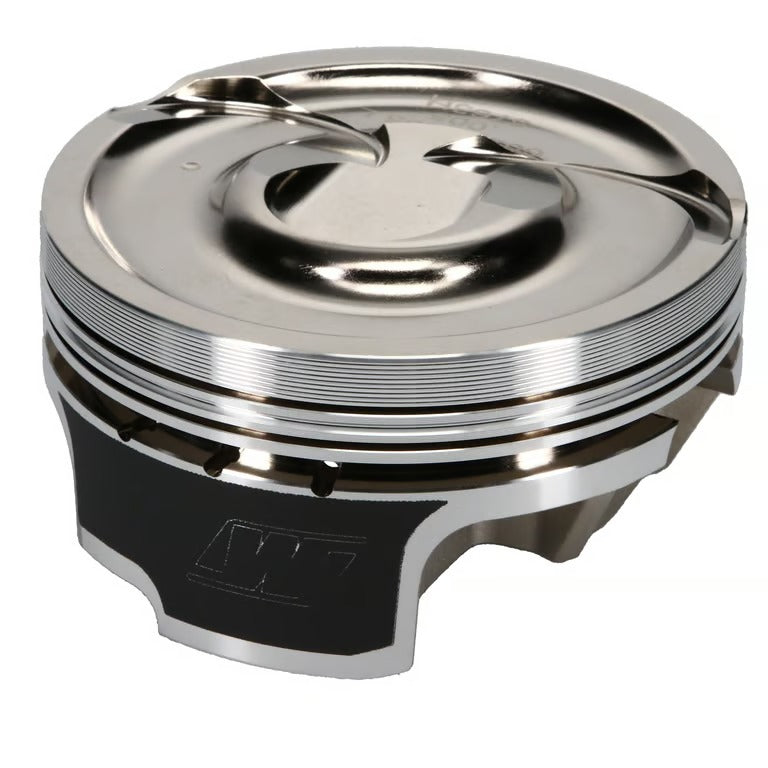

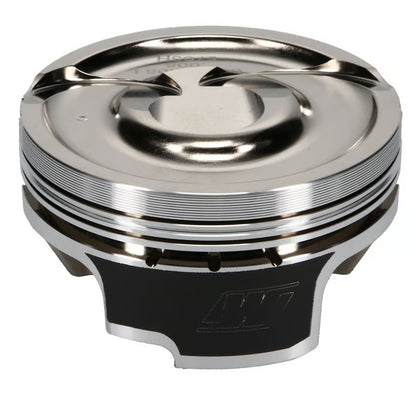

Wiseco Chevrolet LT1 Piston Set, 4.070 in. Bore, 1.115 in. Compression Height, 0.927 in. Pin Diameter, Professional, Set of 8.

Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco?s Professional Series.

  • Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
  • ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
  • Fully machined crown features
  • Precision ring grooves, anti-detonation groove, and additional ring seal improving features
  • Forced pin oiling
  • Designed and built to withstand heavy to severe duty performance applications
Product Series: Professional
Bore Diameter: 4.070
Stroke: 4.000
Rod Length: 6.125
Compression Height: 1.115
Piston Volume: -20.00
Piston Material: 2618
Skirt Coating: Yes
Forging Type: Strutted
Piston Quantity: 8
Ring Set Included: Yes
Top Compression Ring Thickness: 0.047
Second Compression Ring Thickness: 0.047
Oil Ring Thickness: 3.0
Wrist Pin Included: Yes
Wrist Pin Material: 9310
Wrist Pin Style: Floating
Wrist Pin Outer Diameter: 0.927
Product Type: Engine Piston Set
Engine: LT1 Gen 5
Engine - Web: LT
Make: Chevrolet
Make - Web: Chevrolet
Industry: Automotive
Product Market: Domestic
Category Hierarchy: Auto>Pistons>Piston Kits>Domestic>Professional
Out of Stock Message: Estimated Shipped Date 3-4 Weeks
Title - Web: Professional Chevy LT1 Piston Set of 8 - 4.070 in. Bore - 1.115 .in CH, -20.00 CC
Engine Type: ICE
EBAY Category ID: 33623
