Centerforce - 519026651

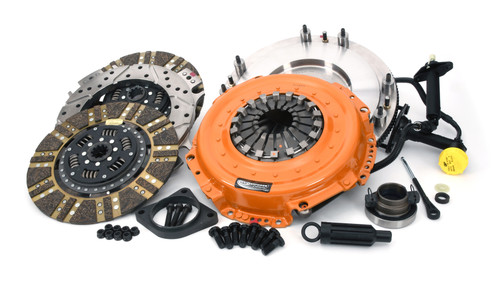

Centerforce(R) Diesel Twin and Flywheel Kit
This Centerforce Twin Disc clutch offers smooth engagement, quiet operation, light pedal, and high-end holding capacity.
Available for Dodge Cummins Diesel equipped 2500-5500 trucks. Centerforce announces their NEW Twin Disc clutch set for Heavy-Duty street and towing use. Truck owners pushing power levels up to 1700 ft/lbs will enjoy the smooth and quiet operation this unique clutch set offers. All components are match balanced and ready for installation.
- Arp Hardware
- Centrifugal Assist Tuned For Diesels
- Reduced Noise And Vibrations
- Built With Improved Cooling
- Smooth Operation And Max Longevity
- Ball Bearing Design
- 100 Percent Hand Built
- Clutch Specs Card Included
Alignment Tool Included: Yes
Clutch Bolt Pattern: 22
Clutch Disc Diameter: 12.250
Clutch Disc Diameter: 311.2
Counterweight Assist: YES
Crankshaft Bolt Hole Quantity: 8
Disc Material: Organic/Carbon composite
Disc Type Sprung Solid: Sprung
Disc Type: Segmented face
Flywheel Counter Balance Weight: 0
Flywheel Crank Bolt Size: M12 x 1.25 x 32
Flywheel Crank Flange Register: 5.118
Input Shaft Diameter: 1-3/8
Input Spline Quantity: 10
Installed Height: 4.475
Made In The USA: Assembled
Material: Billet Steel Flywheel / Cast Iron Pressure Plate / Segmented Organic Friction
Mounting Hardware Included: Yes
Out of Package Weight: 109.10
Pilot Bushing Included: Yes
Pilot Bushing Material: Bearing
Release Bearing Included: Yes
Release Bearing Style: Flat Face
Ring Gear O.D.: 15.625
Tooth Quantity: 152
Torque Capacity: 1700
